Euro Cylinder Hook Lock – 30mm Backset, 46mm Case – Euro Profile Hook Bolt Lock for Aluminium, Sliding & Patio Doors and Gates
£18.50 inc. VAT (£15.42 + VAT)
- Euro profile cylinder hook lock
- 30mm backset (faceplate to cylinder centre)
- 46mm case depth
- 20.4mm hook throw
- Stops doors and gates being lifted or forced
- Fits narrow aluminium and steel stiles
- Sliding, patio and bi-fold doors and gates
- Satin faceplate, 3 fixing points
- Free UK delivery over £65
- Expert help on 0121 714 0770
- Order by 1pm, sent same dayMon–Fri · From £3.95 · FREE over £65
- 30-day returnsOn unused items
- VAT invoiceWith every order
- Secure checkoutCard, Apple Pay, Google Pay
Or call 0121 714 0770
This euro cylinder hook lock has a 30mm backset and a compact 46mm case, made for the narrow stiles on aluminium and steel doors and gates. It takes a standard euro profile cylinder, and when locked the hook bolt swings out 20.4mm and grips the keep, so the door or gate cannot be lifted, levered or pulled apart.
It is a low cost, like-for-like replacement for worn or broken hook locks on sliding patio doors, bi-folds, shopfront doors and sliding gates – anywhere a standard sashlock is too big or a straight bolt is not secure enough.
Where can I use this euro cylinder hook lock?
- Aluminium and steel doors: narrow stile single and double swing doors
- Shopfronts: aluminium shop entrance doors, both swing and sliding
- Sliding doors: sliding patio doors and commercial sliding doors
- Bi-fold doors: the hook stops the leaves being lifted or pulled apart
- Gates: sliding gates and swing gates
Why choose this euro cylinder hook lock?
- Stronger than a straight bolt: the hook grips the keep, so the door cannot be lifted off its track or forced apart.
- Fits narrow stiles: 30mm backset and 46mm case for slim aluminium and steel frames.
- 20.4mm hook throw: a deep, positive engagement with the keep.
- Standard euro profile cylinder: reuse your existing cylinder or key it alike with your other locks.
- Neat finish: satin faceplate with three fixing points.

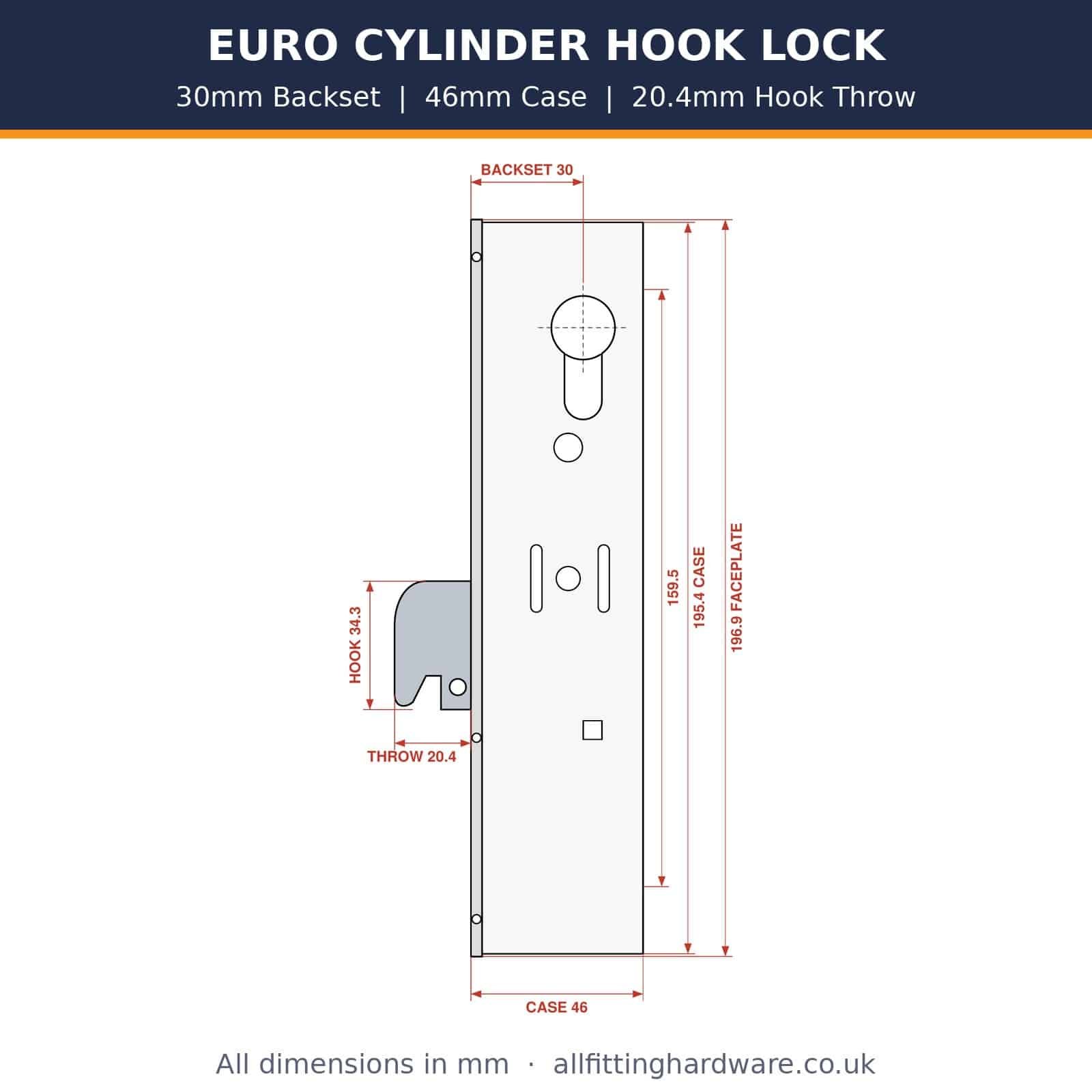

Euro cylinder hook lock specifications
| Lock type | Euro profile cylinder hook lock (hook bolt) |
| Backset | 30mm – faceplate to cylinder centre |
| Case depth | 46mm |
| Hook throw | 20.4mm |
| Hook height | 34.3mm |
| Faceplate length | 196.9mm |
| Case height | 195.4mm |
| Faceplate | Satin finish, 3 fixing points |
| Cylinder | Euro profile – sold separately |
How to measure before you order
Backset is measured from the face of the faceplate to the centre of the cylinder hole – this lock is 30mm.
Case depth is how far the lock body goes into the stile – your profile needs at least 46mm of depth.
Hook position matters too – check the keep on your frame lines up with the 34.3mm hook before you remove the old lock.
Hook locks are not interchangeable between sizes, so measure your old lock before ordering. Not sure? Send us a photo on WhatsApp and we’ll check it for you.
Frequently asked questions
What backset is this euro cylinder hook lock?
30mm, measured from the faceplate to the centre of the cylinder.
Does it come with a cylinder?
No. It takes a standard euro profile cylinder, sold separately, so you can reuse your existing one or match your other locks.
Will it fit my sliding patio door?
If your stile has at least 46mm depth and your old lock has a 30mm backset, yes. Call us or send a photo if you are unsure.
Can I get a drawing with dimensions?
Yes. Call 0121 714 0770 or email us and we’ll send the datasheet over.
Euro cylinder hook lock security tips
A hook lock is only as secure as the cylinder fitted to it. For external doors and gates, choose an anti-snap euro cylinder and make sure it sits flush with the handle or escutcheon, so it cannot be gripped and broken.
The Secured by Design initiative publishes free guidance on choosing secure locks for doors and gates.
Looking for a different size? Browse our full range of hook locks, or call us and we’ll help you match your existing lock.
