Roller Shutter Motor Kit – 160Nm Tube Motor, Receiver, 2 Remotes & Dummy End
£95.00 inc. VAT (£79.17 + VAT)
- Complete roller shutter motor kit
- 160Nm tube motor with manual override
- Motor dummy end included
- Remote receiver + 2 key fobs included
- Receiver and remotes already matched
- Lifts up to 185kg, shutters up to 6m
- 230V single phase, 97mm adaptor
- Cheaper than buying parts separately
- Free UK delivery
- Expert help on 0121 714 0770
- Order by 1pm, sent same dayMon–Fri · From £3.95 · FREE over £65
- 30-day returnsOn unused items
- VAT invoiceWith every order
- Secure checkoutCard, Apple Pay, Google Pay
Or call 0121 714 0770

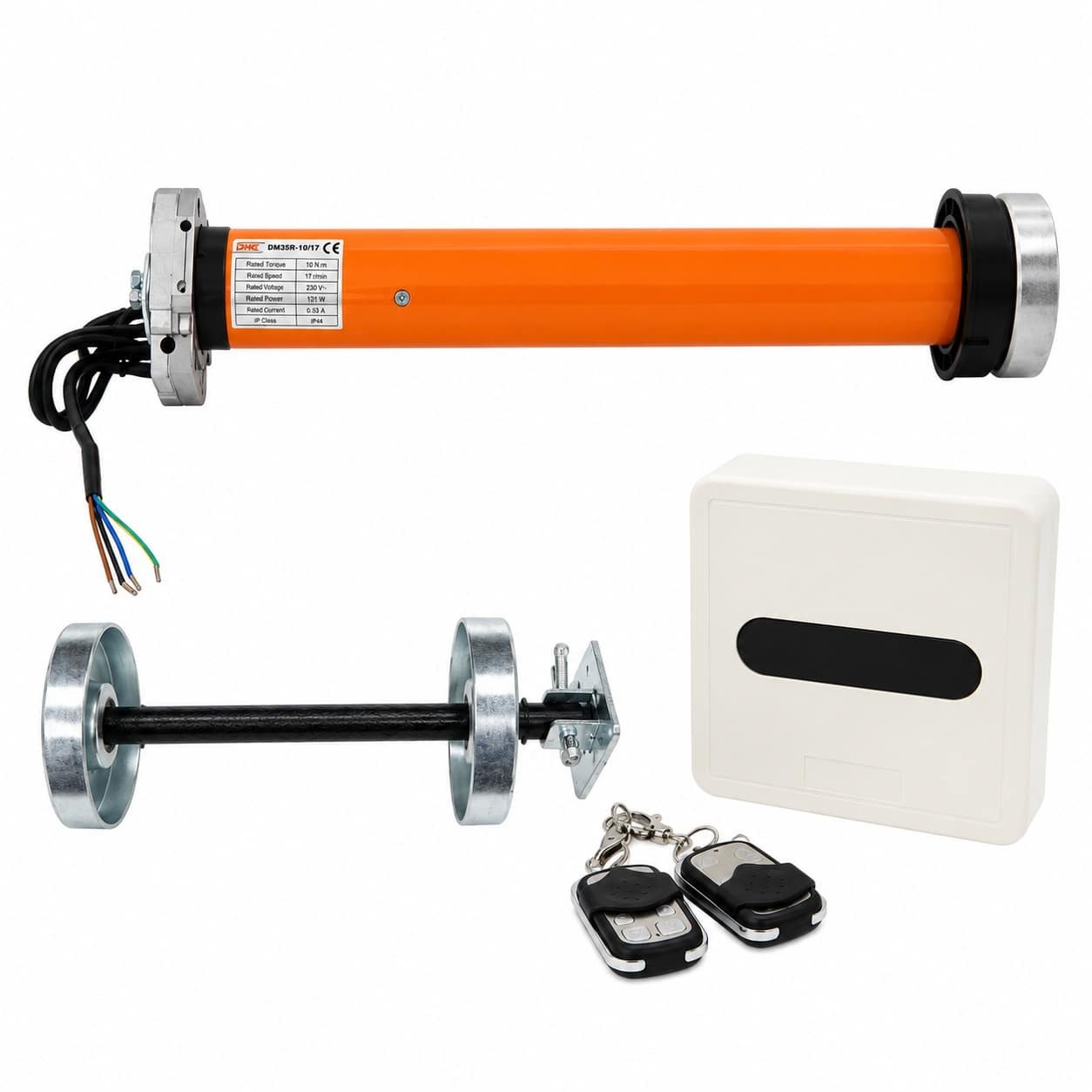

This roller shutter motor kit has everything you need to motorise a manual roller shutter or completely replace a failed electric one in a single order. It includes a 160Nm tubular motor with manual override, a motor dummy end, a remote control receiver and two remote key fobs, all matched and ready to fit.
Buying the kit saves you money compared with buying each part separately, and it means the motor, receiver and remotes are guaranteed to work together. It is ideal for garage doors, shop shutters, lock-ups and commercial roller shutters.
What is in the roller shutter motor kit?
- 1 x 160Nm tubular roller shutter motor with manual override
- 1 x motor dummy end
- 1 x remote control receiver
- 2 x remote control key fobs
Why choose this roller shutter motor kit?
- One order, whole job: motor, dummy end, receiver and remotes in one kit
- Save money: cheaper than buying the motor and remote kit separately
- Guaranteed to work together: receiver and remotes matched to each other
- Never get locked in or out: manual override crank lets you open the shutter in a power cut
- Strong lift: 160Nm motor lifts up to 185kg on shutters up to 6m high
- Standard mains power: 230V single phase
Roller shutter motor kit specifications
- Motor: 160Nm tubular tube motor
- Lifting capacity: 185kg
- Maximum shutter height: 6m
- Power supply: 230V, single phase, 50Hz
- Rated power: 395W
- Limits: adjustable mechanical limit switches
- Manual override: yes, crank handle supplied
- Adaptor: 97mm supplied as standard
- Remote frequency: 433MHz
- Remotes: 2 key fobs included
Frequently asked questions
Is this roller shutter motor kit suitable for my garage door?
The 160Nm motor lifts up to 185kg on shutters up to 6m high, which covers most domestic garage doors and many commercial shutters. Call us with your shutter’s width and height if you are unsure.
Can I convert a manual shutter to electric with this kit?
Yes. This roller shutter motor kit is ideal for converting a manual shutter, as long as the barrel suits the 97mm adaptor supplied. Call us to check other barrel sizes.
Can I add more remotes or a safety beam?
Yes. Call us on 0121 714 0770 for extra remotes, and see our safety photocell beam for added protection.
Do I need a wired switch as well?
It is not required, but many people add a roller shutter key switch as a back-up if the remotes are lost.
Who should fit it?
The motor and receiver run on mains power and the limits need setting, so fitting should be done by a competent electrician or shutter engineer.
Why buy from All Fitting Hardware?
- Free UK delivery on orders over £65
- Easy 30-day returns on unused items
- Secure checkout
- Expert help on 0121 714 0770
Only need the motor? See our 160Nm roller shutter motor, or browse our full range of Shutter Motors.
