Transom Closer – Concealed Door Closer for Aluminium Shopfront Doors, 90° Hold Open
£66.00 inc. VAT (£55.00 + VAT)
Transom closer – concealed overhead door closer for aluminium shopfront doors. Medium spring tension, 90° hold open, arm and pivots supplied.
Order by 1pm Monday to Friday for same-day dispatch. Free UK delivery.
- Order by 1pm, sent same dayMon–Fri · FREE UK delivery on every order
- 30-day returnsOn unused items
- VAT invoiceWith every order
- Secure checkoutCard, Apple Pay, Google Pay
Or call 0121 714 0770
This transom closer is a concealed overhead door closer that fits inside the transom (header) of an aluminium door frame. The closer body is hidden from view, leaving a clean, tidy look on shopfronts and commercial entrances, while it brings the door back shut smoothly every time. It has a medium spring tension and a 90° hold open, so the door can be left open for deliveries, busy trading hours or ventilation and released with a firm push.

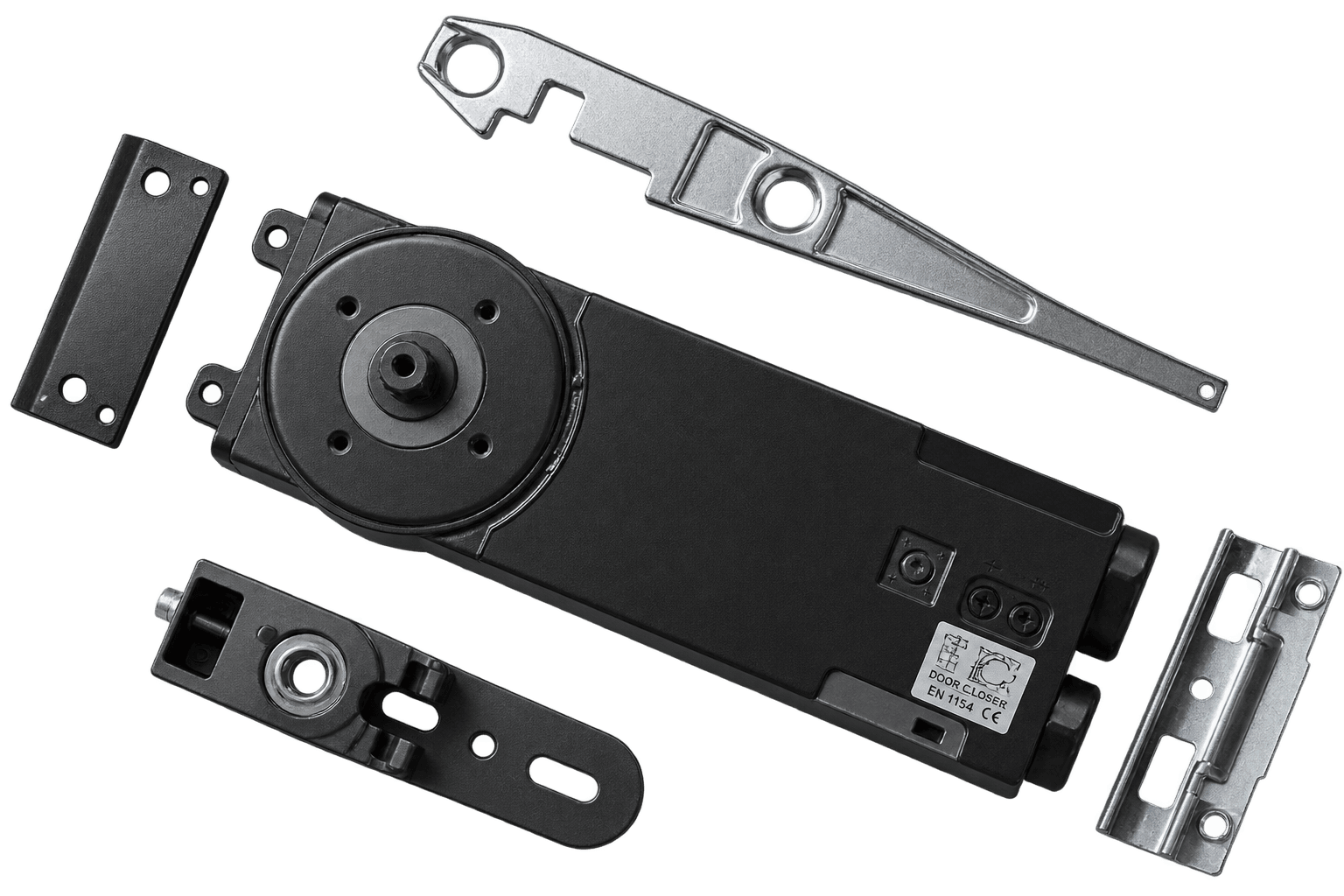

If your existing transom closer has started leaking oil, slamming the door or failing to close it fully, this is a straightforward like-for-like replacement for most standard aluminium shopfront doors. It is supplied with the closer body, arm and pivot parts shown in the photo.
Where can I use this transom closer?
- Aluminium shopfront doors
- Office and commercial entrance doors
- Retail units, cafés and takeaways
- Schools, surgeries and public buildings
- Replacing a worn or leaking concealed transom closer
Why choose this transom closer?
- Concealed in the door frame header – no bulky closer on show
- Medium spring tension, suited to standard aluminium doors
- 90° hold open for deliveries and busy periods
- Smooth, controlled closing to stop doors slamming
- Arm and pivot parts supplied
- Trade quality at a fair online price, with a VAT invoice
Transom closer specifications
| Item code | AF-25 |
| Type | Concealed transom (overhead) door closer |
| Spring tension | Medium |
| Hold open | 90° |
| Suitable for | Aluminium shopfront and commercial doors |
| Supplied with | Closer body, arm and pivot parts |
Choosing the right transom closer

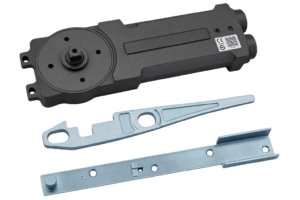

Before you order, measure your old closer body and check the position of the spindle, as concealed closers vary in length and spindle offset between door systems. For heavier or very busy doors, our medium duty transom door closer kit is a stronger option, and if your door already uses a NECO unit, see our NECO transom door closer. You can browse our full range of door closers too.
Fitting tips
Prop the door open and support its weight before removing the old closer. Take out the top pivot and arm, lift the door off, then remove the old closer body from the transom. Fit the new closer in the same position, refit the arm and door, and test the closing and hold open action several times. Fire doors and doors on escape routes have extra rules, so check the guidance from the Door & Hardware Federation or ask a qualified door engineer if you are unsure.
Need help choosing?
Not sure which transom closer fits your door? Send us a photo of your old closer and the door frame on WhatsApp or call 0121 714 0770 and our team will match it for you before you order.
Delivery and collection
Order your transom closer by 1pm Monday to Friday and we send it the same day. UK delivery is free on every order, with next day delivery available for £8.50. You can also collect from our trade counters in Dartford, Kent and Wednesbury, West Midlands, Monday to Saturday 8am–6pm. See our delivery information.
Frequently asked questions
What is a transom closer?
A transom closer is a door closer hidden inside the top section (transom) of the door frame. An arm connects it to the top of the door, so it closes the door without a visible closer on the face of the door.
Will this transom closer hold my door open?
Yes. Open the door to 90° and it will hold open until you push it closed again.
Will it fit my existing door?
It suits most standard aluminium shopfront doors. Send us a photo and the measurements of your old closer and we will confirm it before you order.
Do I get a VAT invoice?
Yes, a VAT invoice is included with every order.
Why buy from All Fitting Hardware?
- In stock – order by 1pm Monday to Friday for same-day dispatch
- Free UK delivery on every order
- VAT invoice with every order
- Easy 30-day returns on unused items
- Collect from our trade counters in Dartford and Wednesbury
- Expert help on 0121 714 0770 or WhatsApp
Fix that slamming shop door today with this transom closer from All Fitting Hardware, the UK supplier of door, glass and roller shutter hardware.
