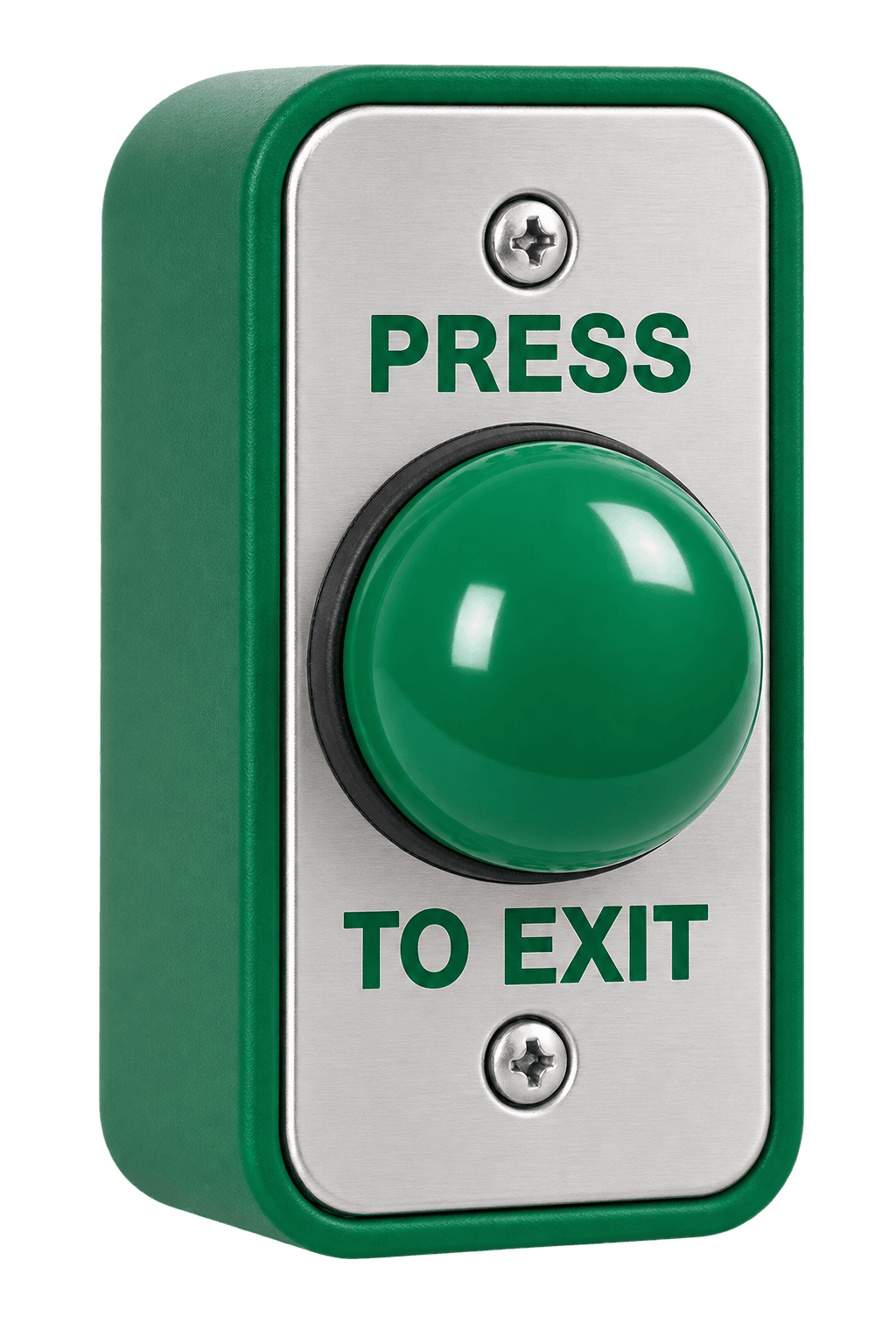

Slim Press to Exit Button – Narrow Green Dome Door Release Button, Stainless Steel, IP66
£24.35 inc. VAT (£20.29 + VAT)
- Narrow architrave design – 39mm wide
- Large green dome button – easy to press
- IP66 rated – internal & external use
- Stainless steel faceplate – vandal resistant
- Momentary NO / NC contacts
- 4A contact rating at 30V AC/DC
- Surface or flush fitting
- Surface back box & security screws included
- Over 1,000,000 operations
- Works -20°C to +60°C
- Size 85 x 39 x 28mm
- In stock – fast 1–2 day UK delivery
- Order by 1pm, sent same dayMon–Fri · FREE UK delivery on every order
- 30-day returnsOn unused items
- VAT invoiceWith every order
- Secure checkoutCard, Apple Pay, Google Pay
Or call 0121 714 0770
This slim press to exit button is a narrow architrave-style green dome exit button for maglocks, access control and door entry systems. The large green dome is easy to see and easy to press, while the slim 39mm wide stainless steel plate fits neatly on door frames, mullions and narrow walls where a standard square button will not. Rated IP66, it can be used both inside and outside.
The button is momentary, so it only gives a signal while it is pressed. That makes this slim press to exit button the standard choice for releasing a magnetic lock or electric lock from the secure side of a door – press to exit, release, and the door locks again behind you.
Why choose this slim press to exit button?
- Narrow architrave design: just 39mm wide – ideal for slim frames and aluminium shopfronts.
- Large green dome button: clear, easy to find and easy to press, including for people with limited grip.
- IP66 rated: sealed against dust and water jets, suitable for internal and external use.
- Stainless steel faceplate: tough, vandal-resistant and easy to clean.
- Momentary NO / NC contacts: works with maglocks, electric locks, access controllers and door entry systems.
- 4A contact rating: at up to 30V AC/DC.
- Surface or flush fitting: supplied with a surface back box and security screws.
- Built to last: rated for over 1,000,000 operations.
Where can I use a slim press to exit button?
- Exit side of doors fitted with a magnetic lock (maglock)
- Shop, office and reception doors with access control
- Aluminium and glass shopfront doors with narrow frames
- Door entry and intercom systems
- Gates and external doors – thanks to the IP66 rating
- Schools, surgeries, care homes and public buildings
For advice on choosing and installing security and access control equipment, the British Security Industry Association is a useful starting point.
How does a press to exit button work?
A press to exit button is wired to the exit or request-to-exit input of your access controller or maglock power supply. When the green button is pressed, the contacts switch and the controller releases the lock for its set time, then the door relocks. On a basic maglock system, the button can also be wired in series with the lock supply so that pressing it breaks the power and releases the door.
Slim press to exit button specifications
| Type | Narrow (architrave) green dome press to exit button |
| Operation | Momentary |
| Contacts | NO / NC |
| Contact rating | 4A at 30V AC/DC |
| IP rating | IP66 – internal and external use |
| Faceplate | Stainless steel |
| Button | Large green plastic dome |
| Size | 85mm H x 39mm W x 28mm D |
| Mounting | Surface (back box included) or flush |
| Operating temperature | -20°C to +60°C |
| Mechanical life | 1,000,000 operations |
| In the box | Exit button, surface back box, security screws |
Installation
Isolate the power first. Fit the slim press to exit button on the secure side of the door, within easy reach of the handle. Use the surface back box supplied, or flush mount it into a suitable narrow back box. Connect COM and NO (or NC, depending on your system) to the exit input of your access controller or maglock power supply. Installation should be carried out by a competent installer. On escape routes, maglocks should also release on power failure and on a fire alarm signal.
Frequently asked questions
Is this slim press to exit button suitable for outside?
Yes. It is IP66 rated, so it can be fitted internally or externally.
Does it come with a back box?
Yes. It is supplied with a surface back box and security screws, or it can be flush mounted.
Will it work with my maglock?
Yes. It works with fail-safe maglocks through the exit input of the lock power supply or access controller. It pairs well with our 275kg magnetic lock kits.
Slim or wide – which press to exit button do I need?
Choose the slim press to exit button for narrow frames and mullions. For a standard wall or square back box, choose our wide press to exit button. Prefer no-touch? See our touchless exit button.
