Double Glass Door T Connector – Overpanel to Side Panel Patch Fitting with 2 Pivots, 10–12mm
£34.50 inc. VAT (£28.75 + VAT)
- Double glass door T connector
- Joins overpanel to central fixed panel
- 2 pivot points: hang a door each side
- Gasket-lined clamps protect the glass
- Fits 10mm – 12mm toughened glass
- Satin / polished finish
- For all-glass shopfronts and entrances
- Quick replacement part
- Free UK delivery
- Expert help on 0121 714 0770
- Order by 1pm, sent same dayMon–Fri · FREE UK delivery on every order
- 30-day returnsOn unused items
- VAT invoiceWith every order
- Secure checkoutCard, Apple Pay, Google Pay
Or call 0121 714 0770

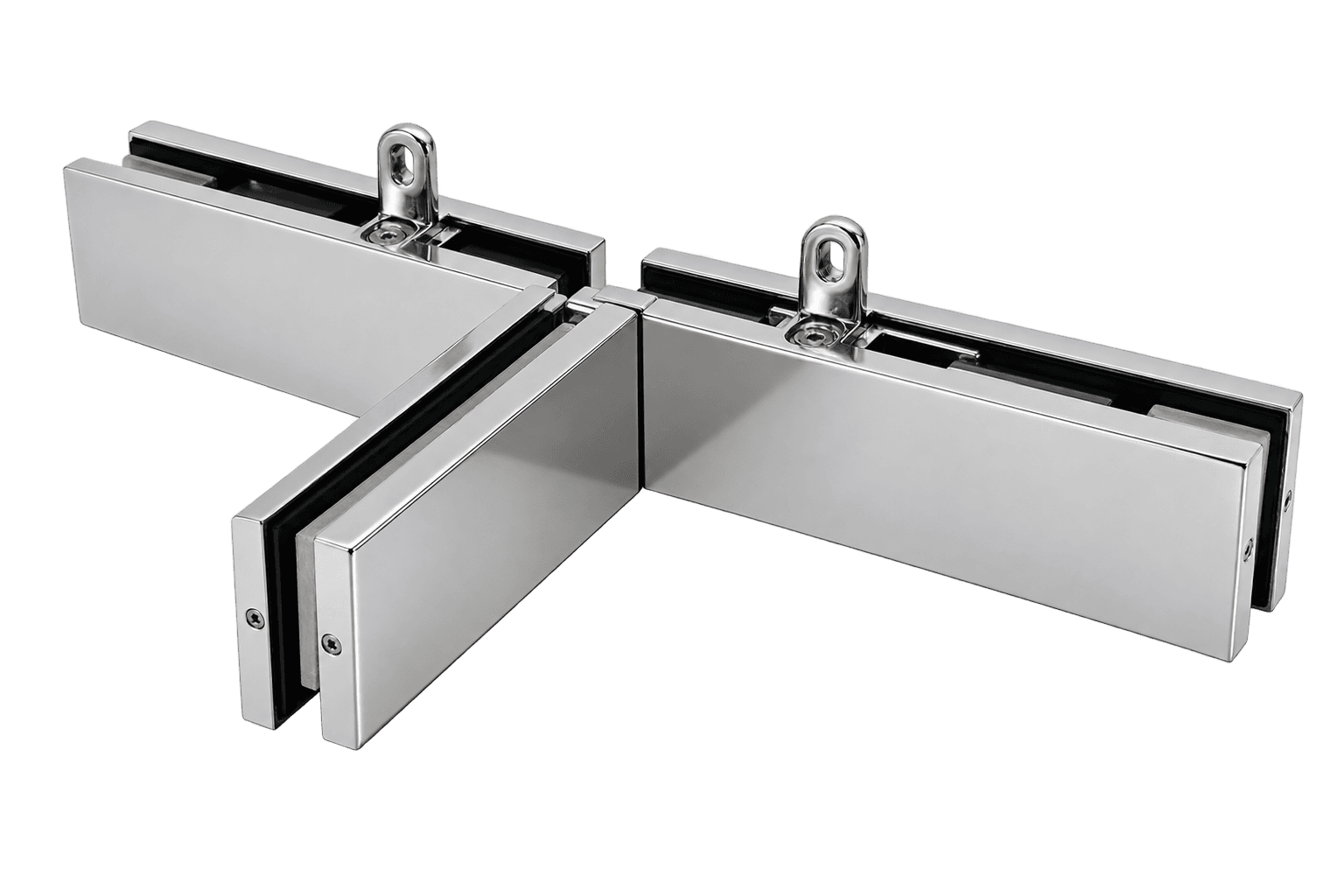

This double glass door T connector is a T-shaped patch fitting that joins a glass overpanel to a central fixed glass panel, with two built-in pivot points so a frameless glass door can be hung on each side. It is the key fitting for all-glass entrances where two doors meet a fixed centre panel under a glass transom.
It gives a clean, strong junction on glass shopfronts, office entrances, hotels and internal glass screens, and is a quick replacement when an existing T connector is damaged or worn.
Why choose this double glass door T connector?
- Three jobs in one: joins overpanel and fixed panel, and hangs two doors
- Two pivot points: one for each glass door either side of the fixed panel
- Protects the glass: gasket-lined clamps cushion every panel
- Fits standard glass: suits 10mm and 12mm toughened glass
- Premium finish: clean, bright finish to match your patch fittings
Double glass door T connector specifications
- Type: T connector patch fitting with double pivots
- Connects: glass overpanel to a central fixed glass panel
- Pivots: 2, for hanging a glass door each side
- Glass thickness: 10mm – 12mm
- Finish: satin / polished
Where does the glass door T connector go on a glass door?
The glass door T connector sits where a glass overpanel meets a central fixed glass panel, with a pivot on each side so a glass door can hang either side. It is used on frameless glass shopfronts, office entrances, showrooms and internal glass screens.
It works alongside our glass door top patch fitting, glass door bottom patch fitting and glass door floor pivot, so you can build or repair the whole door from one supplier.
Patch fittings for a complete frameless glass door
A frameless glass door uses several patch fittings that work together. Use this table to check you have every part you need.
| Part | What it does |
| Bottom patch fitting | Clamps the bottom corner of the door and sits on the floor spring or pivot |
| Top patch fitting | Clamps the top corner of the door and connects to the top pivot |
| Top pivot | Fixed above the door – the top of the door turns on it |
| Floor pivot | Floor spindle for doors that do not need to self-close |
| Non digging floor spring | Self-closing, sits on the floor with no digging out |
| Corner transom patch | Joins the overpanel to a fixed side panel, with pivot |
| Overpanel to wall patch | Joins the overpanel to a wall or frame, with pivot |
| Fin patch fitting | Joins the overpanel to a glass fin, with pivot |
| T connector (this product) | Overpanel to centre fixed panel, with 2 pivots |
| Patch lock | Locks the door at the top or bottom rail |
| Strike box | The keep the patch lock bolts into |
| Centre patch lock | Locks a pair of doors at the meeting edge |
| Top corner locks | Left and right hand top locks |
| Door stoppers | Stop the door at the closed position |
| Glass clamps | Fix fixed glass panels to walls and to each other |
See all our glass door patch fittings.
How to choose the right glass door T connector
- Glass thickness: our patch fittings suit 10–12mm toughened safety glass.
- Glass cut-outs: notches and holes must be cut before the glass is toughened, so check your glass matches the fitting.
- Left or right hand: for handed fittings, stand outside the door and check which side the pivot or lock is on.
- Finish: match the satin or polished finish of your other fittings for a neat look.
- Door weight: check the weight of your door against the rating of the fitting and the floor spring or pivot.
Not sure? Send a photo of your door and old fitting and we will confirm the right glass door T connector before you order.
Fitting tips
Always fit glass door hardware with the gaskets supplied between the metal and the glass, and never over-tighten the fixings, as point loads can crack toughened glass. Check the door is level and swings freely before you finish. Frameless glass doors are heavy, so fitting should be done by a competent glazier or shopfitter. For guidance on glass safety, see the Glass and Glazing Federation.
Looking after your glass door fittings
Wipe stainless fittings with warm soapy water and a soft cloth, and avoid abrasive pads or bleach-based cleaners. Every few months, check the fixings are tight and the door still closes smoothly. Replacing a worn glass door T connector early protects the glass and the rest of the door.
Delivery, collection and trade orders
Order your glass door T connector by 1pm Monday to Friday for same-day dispatch, with free UK delivery on every order and a VAT invoice included. You can also collect from our trade counters in Dartford, Kent and Wednesbury, West Midlands, Monday to Saturday 8am–6pm. Glaziers and shopfitters can message us on WhatsApp or call 0121 714 0770 for bulk quotes.
Frequently asked questions
Where is a double glass door T connector used?
At the point where a glass overpanel meets a central fixed glass panel, with a glass door hung on each side. It is common on wide all-glass shopfronts and office entrances.
What else do I need?
Each door needs a top patch fitting, a bottom patch fitting and a floor spring or floor pivot. See our patch fittings and floor springs.
Will it fit my glass?
The glass must be toughened 10mm or 12mm, pre-drilled or notched to suit patch fittings at the manufacturing stage. Send us a photo of your existing fitting on 0121 714 0770 and we will check it matches.
