Name: Wall to Glass Clamp | Great Value 10–12mm Glass Wall Bracket
SKU: AB33093451
Price: 17.49 GBP
Availability: InStock

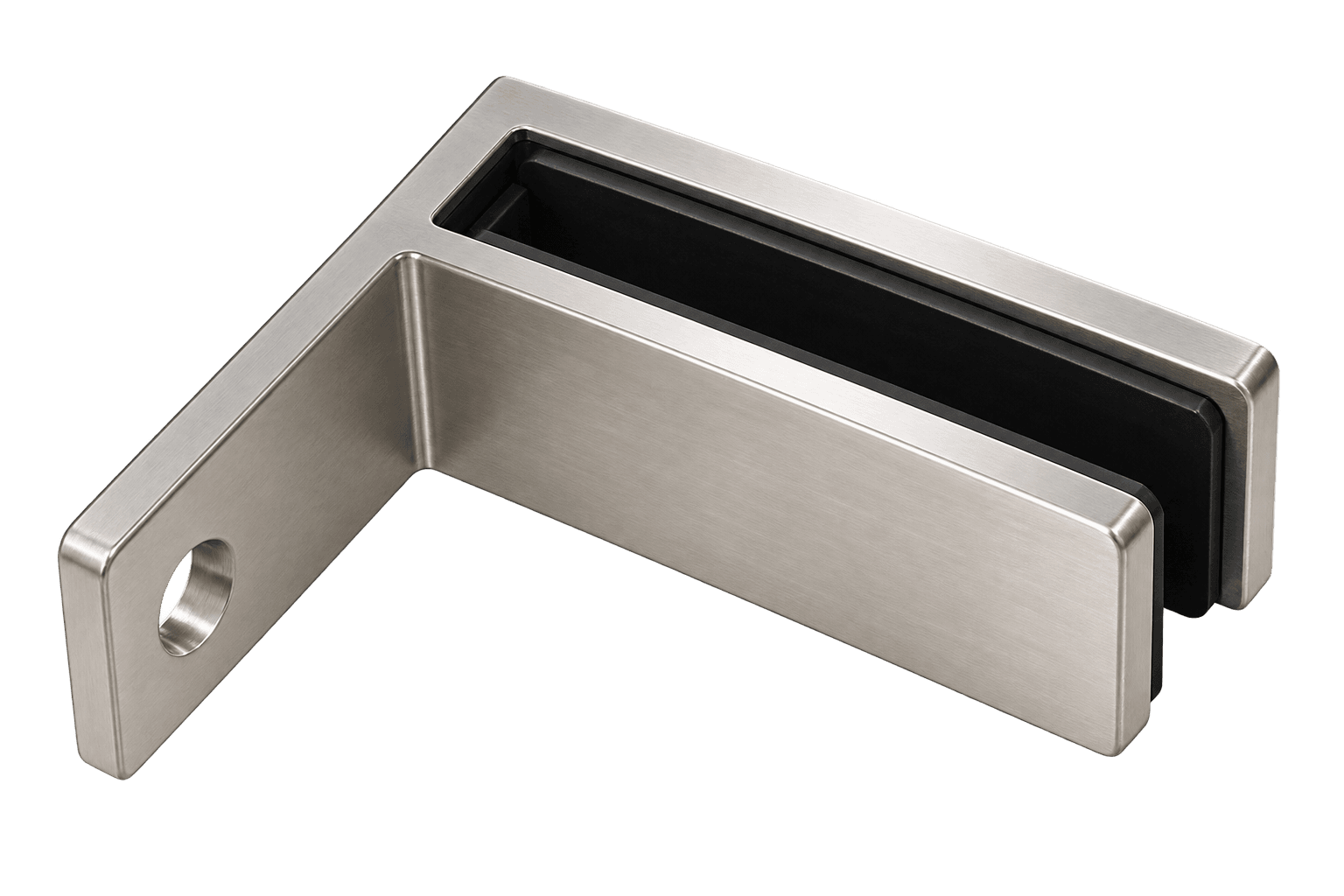

This wall to glass clamp fixes a glass panel securely to a wall, column or frame at 90°, giving a neat, frameless finish. It is ideal for glass partitions, shower screens, shopfront side panels, balustrades and display cases where a fixed glass panel meets a wall.

Available in satin or polished to match your other glass fittings, it is a simple, low cost way to fix a panel neatly or to replace a damaged or missing wall clamp.

Why choose this wall to glass clamp?

Secure fixing: holds a glass panel firmly to a wall, column or frame
Frameless look: neat, low-profile bracket with no channel or frame
Fits standard glass: suits 10mm and 12mm toughened glass
Match your fittings: satin or polished finish
Versatile: partitions, shower screens, shopfronts, balustrades and display cases
Great value: buy several and qualify for free UK delivery

Wall to glass clamp specifications

Type: 90° wall to glass clamp (single sided)
Glass thickness: 10mm – 12mm
Finish: satin / polished
Use: fixing a glass panel to a wall, column or frame

Where does the wall to glass clamp go on a glass door?

The wall to glass clamp fixes a fixed glass panel to a wall, column or frame at 90°, usually at the side of a partition, screen or shopfront. It is used on frameless glass shopfronts, office entrances, showrooms and internal glass screens.

It works alongside our straight glass to glass clamp, glass corner clamp and overpanel to wall patch fitting, so you can build or repair the whole door from one supplier.

Patch fittings for a complete frameless glass door

A frameless glass door uses several patch fittings that work together. Use this table to check you have every part you need.

Part	What it does
Bottom patch fitting	Clamps the bottom corner of the door and sits on the floor spring or pivot
Top patch fitting	Clamps the top corner of the door and connects to the top pivot
Top pivot	Fixed above the door – the top of the door turns on it
Floor pivot	Floor spindle for doors that do not need to self-close
Non digging floor spring	Self-closing, sits on the floor with no digging out
Corner transom patch	Joins the overpanel to a fixed side panel, with pivot
Overpanel to wall patch	Joins the overpanel to a wall or frame, with pivot
Fin patch fitting	Joins the overpanel to a glass fin, with pivot
T connector	Overpanel to centre fixed panel, with 2 pivots
Patch lock	Locks the door at the top or bottom rail
Strike box	The keep the patch lock bolts into
Centre patch lock	Locks a pair of doors at the meeting edge
Top corner locks	Left and right hand top locks
Door stoppers	Stop the door at the closed position
Glass clamps (this product)	Fix fixed glass panels to walls and to each other

See all our glass door patch fittings.

How to choose the right wall to glass clamp

Glass thickness: our patch fittings suit 10–12mm toughened safety glass.
Glass cut-outs: notches and holes must be cut before the glass is toughened, so check your glass matches the fitting.
Left or right hand: for handed fittings, stand outside the door and check which side the pivot or lock is on.
Finish: match the satin or polished finish of your other fittings for a neat look.
Door weight: check the weight of your door against the rating of the fitting and the floor spring or pivot.

Not sure? Send a photo of your door and old fitting and we will confirm the right wall to glass clamp before you order.

Fitting tips

Always fit glass door hardware with the gaskets supplied between the metal and the glass, and never over-tighten the fixings, as point loads can crack toughened glass. Check the door is level and swings freely before you finish. Frameless glass doors are heavy, so fitting should be done by a competent glazier or shopfitter. For guidance on glass safety, see the Glass and Glazing Federation.

Looking after your glass door fittings

Wipe stainless fittings with warm soapy water and a soft cloth, and avoid abrasive pads or bleach-based cleaners. Every few months, check the fixings are tight and the door still closes smoothly. Replacing a worn wall to glass clamp early protects the glass and the rest of the door.

Delivery, collection and trade orders

Order your wall to glass clamp by 1pm Monday to Friday for same-day dispatch, with free UK delivery on every order and a VAT invoice included. You can also collect from our trade counters in Dartford, Kent and Wednesbury, West Midlands, Monday to Saturday 8am–6pm. Glaziers and shopfitters can message us on WhatsApp or call 0121 714 0770 for bulk quotes.

Frequently asked questions

What is a wall to glass clamp used for?
It holds a fixed glass panel against a wall or column, for example the side panel of a glass partition, shower screen or shopfront.

How many wall to glass clamps do I need?
Most panels use two clamps on the wall side, one near the top and one near the bottom. Taller or heavier panels may need three.

Does the glass need drilling?
Glass clamps usually need a hole in the toughened glass for the fixing, which must be drilled before the glass is toughened. Check your glass is prepared, or call us and we will advise.

Do you have glass to glass clamps?
Yes. See our straight glass to glass clamp, glass corner clamp and mitre corner glass clamp.
