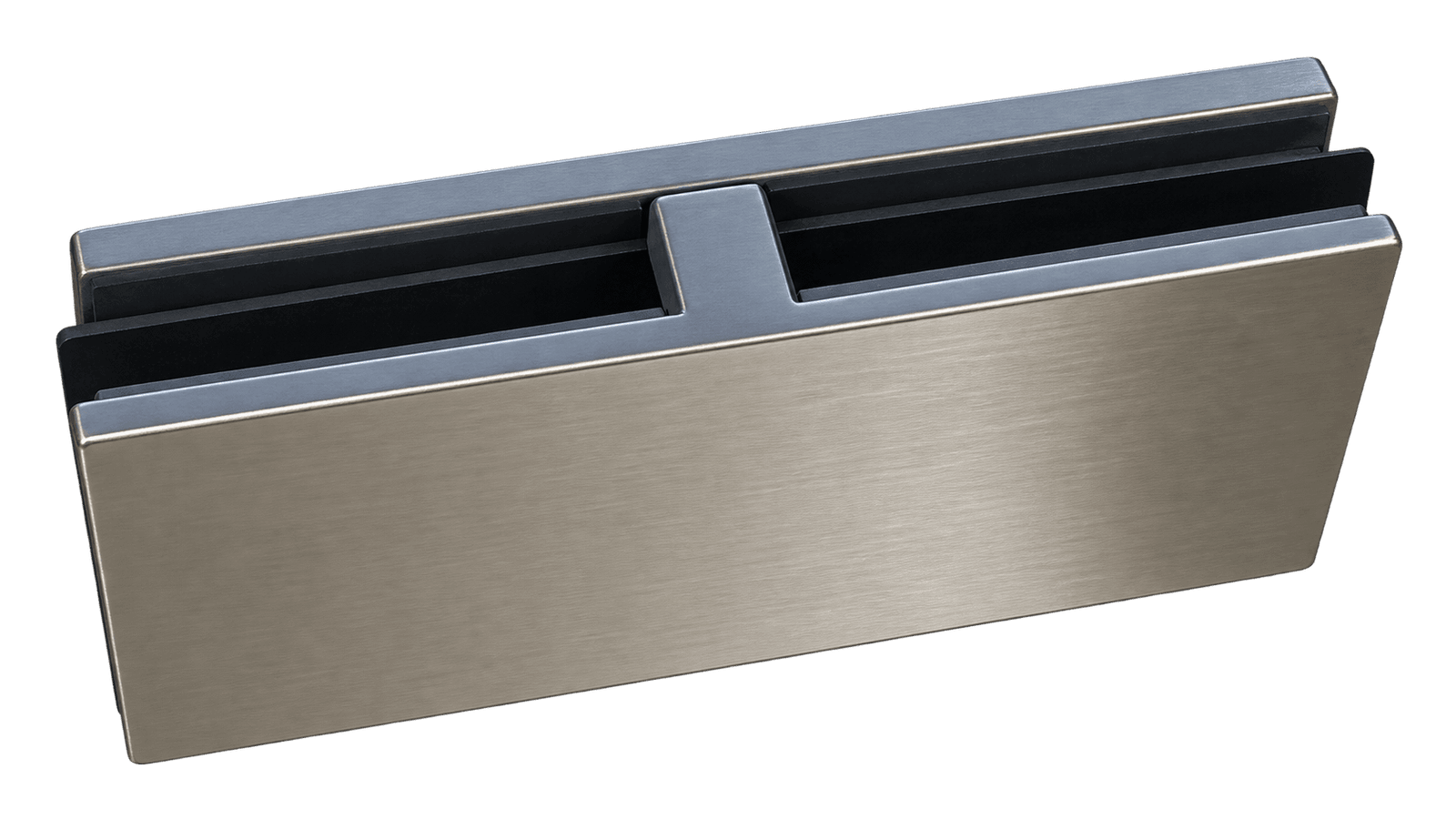

Straight Glass to Glass Clamp – 180° Inline Glass Panel Connector, Satin, 10–12mm Glass
£20.15 inc. VAT (£16.79 + VAT)
- Straight glass to glass clamp
- Joins two panels in line (180°)
- Fits 10mm – 12mm toughened glass
- Satin finish
- Clean, frameless look
- For partitions and shower screens
- Also suits balustrades and display cases
- Matches our corner and wall clamps
- Buy 3 for free UK delivery
- Expert help on 0121 714 0770
- Order by 1pm, sent same dayMon–Fri · FREE UK delivery on every order
- 30-day returnsOn unused items
- VAT invoiceWith every order
- Secure checkoutCard, Apple Pay, Google Pay
Or call 0121 714 0770
This straight glass to glass clamp joins two fixed glass panels in a straight line (180°), creating a continuous, frameless run of glass. It is ideal for extending glass partitions, shower screens, balustrades, display cases and shopfront glazing where two panels meet edge to edge.
The satin finish suits modern interiors and matches our other glass clamps and patch fittings. It is a simple, low cost way to join panels neatly, or to replace a damaged or missing clamp.
Why choose this straight glass to glass clamp?
- Seamless look: joins two glass panels in line for a clean, frameless finish
- Fits standard glass: suits 10mm and 12mm toughened glass
- Modern finish: satin, to match other glass fittings
- Versatile: partitions, shower screens, balustrades, display cases and shopfronts
- Great value: a quality glass connector at a low price
Straight glass to glass clamp specifications
- Type: 180° straight (inline) glass to glass clamp
- Glass thickness: 10mm – 12mm
- Finish: satin
- Use: joining two fixed glass panels edge to edge
Where does the straight glass to glass clamp go on a glass door?
The straight glass to glass clamp joins two fixed glass panels edge to edge in a straight line, so a partition or screen can run longer than one sheet of glass. It is used on frameless glass shopfronts, office entrances, showrooms and internal glass screens.
It works alongside our wall to glass clamp, glass corner clamp and mitre corner glass clamp, so you can build or repair the whole door from one supplier.
Patch fittings for a complete frameless glass door
A frameless glass door uses several patch fittings that work together. Use this table to check you have every part you need.
| Part | What it does |
| Bottom patch fitting | Clamps the bottom corner of the door and sits on the floor spring or pivot |
| Top patch fitting | Clamps the top corner of the door and connects to the top pivot |
| Top pivot | Fixed above the door – the top of the door turns on it |
| Floor pivot | Floor spindle for doors that do not need to self-close |
| Non digging floor spring | Self-closing, sits on the floor with no digging out |
| Corner transom patch | Joins the overpanel to a fixed side panel, with pivot |
| Overpanel to wall patch | Joins the overpanel to a wall or frame, with pivot |
| Fin patch fitting | Joins the overpanel to a glass fin, with pivot |
| T connector | Overpanel to centre fixed panel, with 2 pivots |
| Patch lock | Locks the door at the top or bottom rail |
| Strike box | The keep the patch lock bolts into |
| Centre patch lock | Locks a pair of doors at the meeting edge |
| Top corner locks | Left and right hand top locks |
| Door stoppers | Stop the door at the closed position |
| Glass clamps | Fix fixed glass panels to walls and to each other |
See all our glass door patch fittings.
How to choose the right straight glass to glass clamp
- Glass thickness: our patch fittings suit 10–12mm toughened safety glass.
- Glass cut-outs: notches and holes must be cut before the glass is toughened, so check your glass matches the fitting.
- Left or right hand: for handed fittings, stand outside the door and check which side the pivot or lock is on.
- Finish: match the satin or polished finish of your other fittings for a neat look.
- Door weight: check the weight of your door against the rating of the fitting and the floor spring or pivot.
Not sure? Send a photo of your door and old fitting and we will confirm the right straight glass to glass clamp before you order.
Fitting tips
Always fit glass door hardware with the gaskets supplied between the metal and the glass, and never over-tighten the fixings, as point loads can crack toughened glass. Check the door is level and swings freely before you finish. Frameless glass doors are heavy, so fitting should be done by a competent glazier or shopfitter. For guidance on glass safety, see the Glass and Glazing Federation.
Looking after your glass door fittings
Wipe stainless fittings with warm soapy water and a soft cloth, and avoid abrasive pads or bleach-based cleaners. Every few months, check the fixings are tight and the door still closes smoothly. Replacing a worn straight glass to glass clamp early protects the glass and the rest of the door.
Delivery, collection and trade orders
Order your straight glass to glass clamp by 1pm Monday to Friday for same-day dispatch, with free UK delivery on every order and a VAT invoice included. You can also collect from our trade counters in Dartford, Kent and Wednesbury, West Midlands, Monday to Saturday 8am–6pm. Glaziers and shopfitters can message us on WhatsApp or call 0121 714 0770 for bulk quotes.
Frequently asked questions
What is a straight glass to glass clamp used for?
It holds two fixed glass panels together in a straight line, for example to extend a glass partition or join two sections of a shower screen or balustrade.
How many do I need?
Most joins use two clamps, one near the top and one near the bottom. Taller panels may need three.
Does the glass need drilling?
Glass clamps usually need a hole in the toughened glass for the fixing, which must be drilled before the glass is toughened. Check your glass is prepared, or call us and we will advise.
Do you have corner and wall clamps?
Yes. See our 90° glass corner clamp, mitre corner glass clamp and wall to glass clamp.
