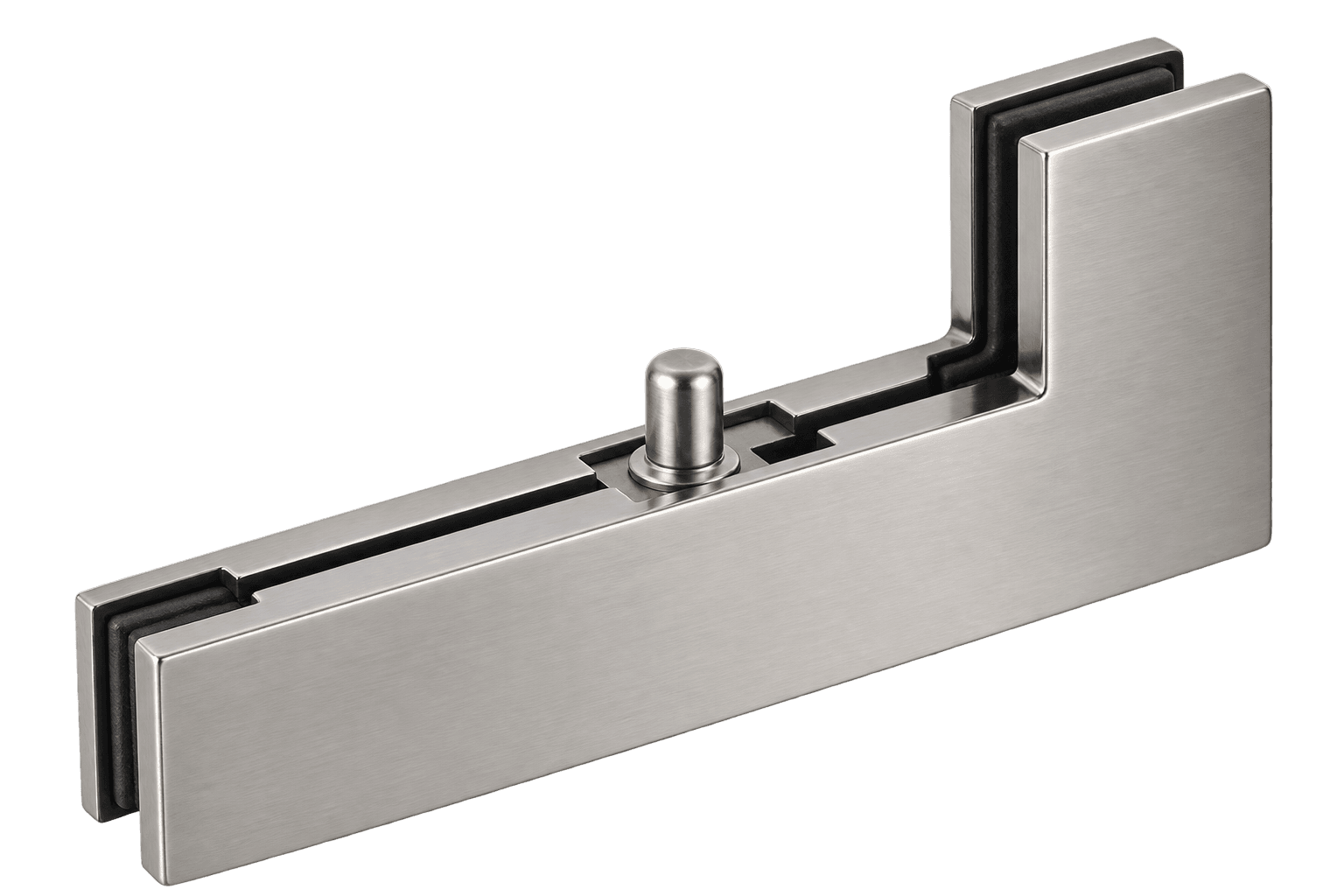

Corner Transom Patch Fitting with Pivot – Satin Stainless, 10–12mm Glass
£26.50 inc. VAT (£22.08 + VAT)
- Corner transom patch fitting with pivot connection
- Joins the transom (overpanel) to the side panel
- Built-in pivot for the top of the door
- Fits over the glass, no frame needed
- Suits 10mm and 12mm toughened glass
- Zinc alloy / aluminium diecast body
- Satin stainless finish
- Clamp-on fixing, gaskets included
- Works with top and bottom patch fittings and a floor spring
- Fast UK dispatch
- Order by 1pm, sent same dayMon–Fri · FREE UK delivery on every order
- 30-day returnsOn unused items
- VAT invoiceWith every order
- Secure checkoutCard, Apple Pay, Google Pay
Or call 0121 714 0770
This corner transom patch fitting sits over the glass at the top corner of a frameless entrance, where the transom (overpanel) meets the fixed side panel. It joins both panels and has a built-in pivot connection for the top of the glass door. It clamps onto 10–12mm toughened glass and is used on shopfronts, office entrances, showrooms and glass partitions.
It has a satin stainless finish to match standard patch fittings. It’s suitable for new installs or as a direct replacement for a worn or damaged corner transom patch fitting.
Why choose this corner transom patch fitting?
- 3-in-1 fitting: holds the transom, joins the side panel and gives the door its top pivot.
- Smooth door swing: the pivot connection lets the glass door open and close easily.
- Strong corner joint: keeps the overpanel and side panel firmly aligned.
- Easy clamp-on fit: fits over the glass with gaskets and cover plates, with no frame needed.
- Fits 10–12mm glass: suits the standard toughened glass on frameless entrances.
- Great value: trade-quality fitting with fast UK dispatch.
Corner transom patch fitting specifications
- Type: over-glass corner transom fitting with pivot connection
- Position: top corner of the entrance, where the transom meets the side panel
- Glass thickness: 10–12mm toughened glass
- Body: zinc alloy / aluminium diecast
- Finish: satin stainless (satin nickel plated)
- Use: shopfronts, office entrances, showrooms and partitions
Where does the corner transom patch fitting go on a glass door?
The corner transom patch fitting sits at the top corner where the transom (overpanel) meets the fixed side panel, and carries the top pivot of the door. It is used on frameless glass shopfronts, office entrances, showrooms and internal glass screens.
It works alongside our right hand overpanel patch fitting, single glass door stopper and glass door top patch fitting, so you can build or repair the whole door from one supplier.
Patch fittings for a complete frameless glass door
A frameless glass door uses several patch fittings that work together. Use this table to check you have every part you need.
| Part | What it does |
| Bottom patch fitting | Clamps the bottom corner of the door and sits on the floor spring or pivot |
| Top patch fitting | Clamps the top corner of the door and connects to the top pivot |
| Top pivot | Fixed above the door – the top of the door turns on it |
| Floor pivot | Floor spindle for doors that do not need to self-close |
| Non digging floor spring | Self-closing, sits on the floor with no digging out |
| Corner transom patch (this product) | Joins the overpanel to a fixed side panel, with pivot |
| Overpanel to wall patch | Joins the overpanel to a wall or frame, with pivot |
| Fin patch fitting | Joins the overpanel to a glass fin, with pivot |
| T connector | Overpanel to centre fixed panel, with 2 pivots |
| Patch lock | Locks the door at the top or bottom rail |
| Strike box | The keep the patch lock bolts into |
| Centre patch lock | Locks a pair of doors at the meeting edge |
| Top corner locks | Left and right hand top locks |
| Door stoppers | Stop the door at the closed position |
| Glass clamps | Fix fixed glass panels to walls and to each other |
See all our glass door patch fittings.
How to choose the right corner transom patch fitting
- Glass thickness: our patch fittings suit 10–12mm toughened safety glass.
- Glass cut-outs: notches and holes must be cut before the glass is toughened, so check your glass matches the fitting.
- Left or right hand: for handed fittings, stand outside the door and check which side the pivot or lock is on.
- Finish: match the satin or polished finish of your other fittings for a neat look.
- Door weight: check the weight of your door against the rating of the fitting and the floor spring or pivot.
Not sure? Send a photo of your door and old fitting and we will confirm the right corner transom patch fitting before you order.
Fitting tips
Always fit glass door hardware with the gaskets supplied between the metal and the glass, and never over-tighten the fixings, as point loads can crack toughened glass. Check the door is level and swings freely before you finish. Frameless glass doors are heavy, so fitting should be done by a competent glazier or shopfitter. For guidance on glass safety, see the Glass and Glazing Federation.
Looking after your glass door fittings
Wipe stainless fittings with warm soapy water and a soft cloth, and avoid abrasive pads or bleach-based cleaners. Every few months, check the fixings are tight and the door still closes smoothly. Replacing a worn corner transom patch fitting early protects the glass and the rest of the door.
Delivery, collection and trade orders
Order your corner transom patch fitting by 1pm Monday to Friday for same-day dispatch, with free UK delivery on every order and a VAT invoice included. You can also collect from our trade counters in Dartford, Kent and Wednesbury, West Midlands, Monday to Saturday 8am–6pm. Glaziers and shopfitters can message us on WhatsApp or call 0121 714 0770 for bulk quotes.
Frequently asked questions
What is a corner transom patch fitting?
It’s the fitting at the top corner of a glass entrance that connects the transom (overpanel) to the side panel. It also gives the door a pivot point to swing on.
What else do I need?
The door needs a top patch fitting at the top and a bottom patch fitting with a floor spring or floor pivot underneath. We can match the full set for you.
What glass does it fit?
It fits 10mm and 12mm toughened glass. Gaskets are included.
Is there a matching lock keep?
Yes. Our corner strike box fits the same corner position and gives a patch lock bolt somewhere to lock into.
