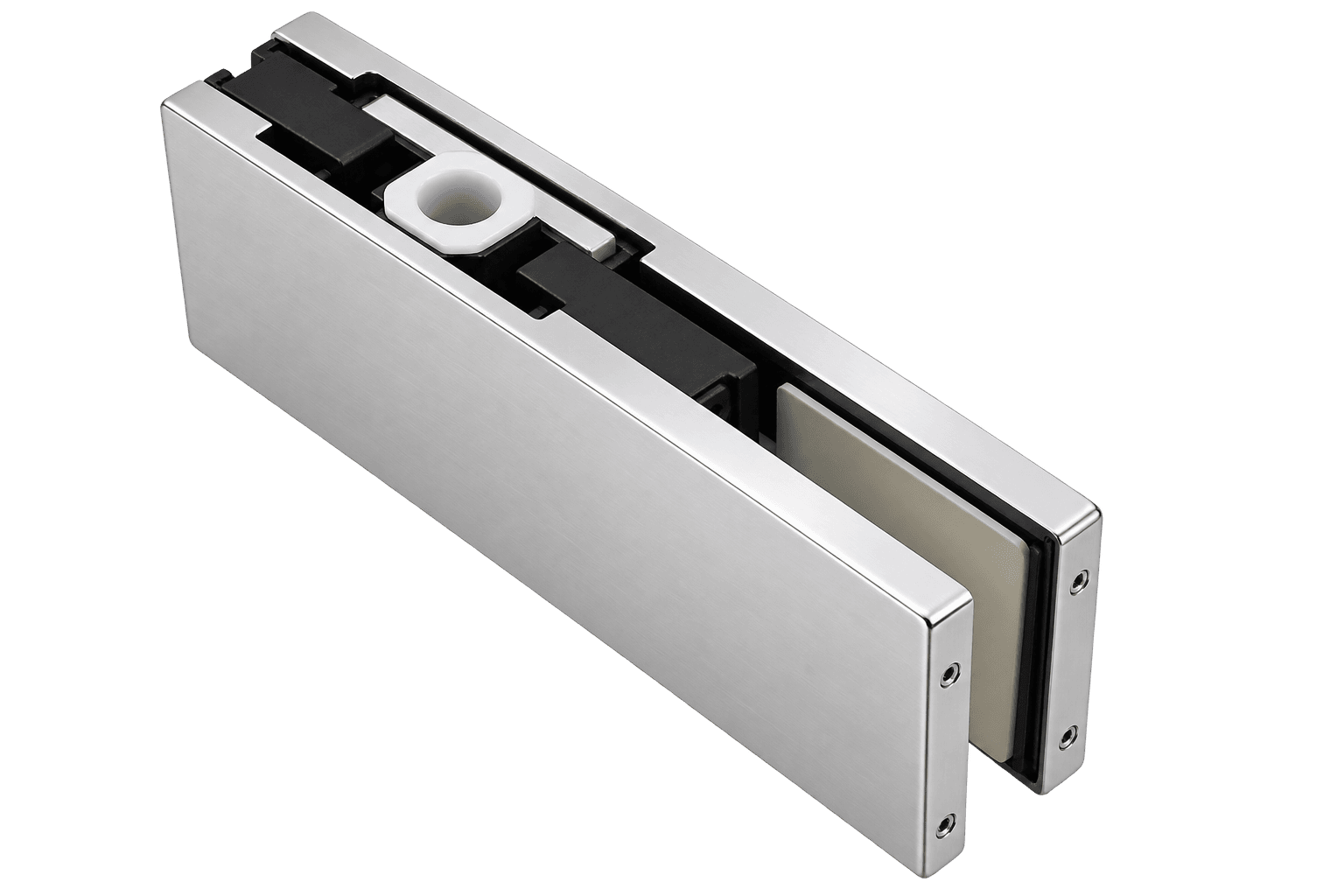

Non Dig Closer Top Fitting – Top Patch for Glass Door Hydraulic Patch Closer, Satin, 10–12mm
£39.00 inc. VAT (£32.50 + VAT)
- Non dig closer top fitting
- Matches non-dig hydraulic patch closers
- Top patch for frameless glass doors
- Fits 10mm – 12mm toughened glass
- Satin finish
- No floor digging needed
- Ideal for refurbishments and tiled floors
- Quick replacement part
- Free UK delivery
- Expert help on 0121 714 0770
- Order by 1pm, sent same dayMon–Fri · FREE UK delivery on every order
- 30-day returnsOn unused items
- VAT invoiceWith every order
- Secure checkoutCard, Apple Pay, Google Pay
Or call 0121 714 0770
This non dig closer top fitting is the matching top patch for a non-dig hydraulic glass door closer. It clamps to the top corner of a frameless glass door and holds it in line with the closer below, so the door swings smoothly and closes under control.
Non-dig closers sit on the floor instead of in a recess, so there is no need to dig out the floor. That makes them ideal for refurbishments, tiled or heated floors, and anywhere a traditional floor spring is not practical. This satin top fitting completes the set.
Why choose this non dig closer top fitting?
- Perfect match: designed to pair with a non-dig hydraulic patch closer
- No floor digging: part of a non-dig system, ideal for refurbishments
- Fits standard glass: suits 10mm to 12mm toughened glass doors
- Neat finish: satin finish to match your patch fittings
- Replacement part: a quick fix for a worn or damaged top patch
Non dig closer top fitting specifications
- Type: top patch fitting for non-dig hydraulic glass door closer
- Glass thickness: 10mm – 12mm
- Finish: satin
- Position: top corner of the door
- Product code: CK100T
Where does the non dig closer top fitting go on a glass door?
The non dig closer top fitting fits the top corner of the door above a non-dig hydraulic patch closer, holding the top of the glass in line with the closer at the bottom. It is used on frameless glass shopfronts, office entrances, showrooms and internal glass screens.
It works alongside our non digging floor spring and glass door top pivot, so you can build or repair the whole door from one supplier.
Patch fittings for a complete frameless glass door
A frameless glass door uses several patch fittings that work together. Use this table to check you have every part you need.
| Part | What it does |
| Bottom patch fitting | Clamps the bottom corner of the door and sits on the floor spring or pivot |
| Top patch fitting | Clamps the top corner of the door and connects to the top pivot |
| Top pivot | Fixed above the door – the top of the door turns on it |
| Floor pivot | Floor spindle for doors that do not need to self-close |
| Non digging floor spring | Self-closing, sits on the floor with no digging out |
| Corner transom patch | Joins the overpanel to a fixed side panel, with pivot |
| Overpanel to wall patch | Joins the overpanel to a wall or frame, with pivot |
| Fin patch fitting | Joins the overpanel to a glass fin, with pivot |
| T connector | Overpanel to centre fixed panel, with 2 pivots |
| Patch lock | Locks the door at the top or bottom rail |
| Strike box | The keep the patch lock bolts into |
| Centre patch lock | Locks a pair of doors at the meeting edge |
| Top corner locks | Left and right hand top locks |
| Door stoppers | Stop the door at the closed position |
| Glass clamps | Fix fixed glass panels to walls and to each other |
See all our glass door patch fittings.
How to choose the right non dig closer top fitting
- Glass thickness: our patch fittings suit 10–12mm toughened safety glass.
- Glass cut-outs: notches and holes must be cut before the glass is toughened, so check your glass matches the fitting.
- Left or right hand: for handed fittings, stand outside the door and check which side the pivot or lock is on.
- Finish: match the satin or polished finish of your other fittings for a neat look.
- Door weight: check the weight of your door against the rating of the fitting and the floor spring or pivot.
Not sure? Send a photo of your door and old fitting and we will confirm the right non dig closer top fitting before you order.
Fitting tips
Always fit glass door hardware with the gaskets supplied between the metal and the glass, and never over-tighten the fixings, as point loads can crack toughened glass. Check the door is level and swings freely before you finish. Frameless glass doors are heavy, so fitting should be done by a competent glazier or shopfitter. For guidance on glass safety, see the Glass and Glazing Federation.
Looking after your glass door fittings
Wipe stainless fittings with warm soapy water and a soft cloth, and avoid abrasive pads or bleach-based cleaners. Every few months, check the fixings are tight and the door still closes smoothly. Replacing a worn non dig closer top fitting early protects the glass and the rest of the door.
Delivery, collection and trade orders
Order your non dig closer top fitting by 1pm Monday to Friday for same-day dispatch, with free UK delivery on every order and a VAT invoice included. You can also collect from our trade counters in Dartford, Kent and Wednesbury, West Midlands, Monday to Saturday 8am–6pm. Glaziers and shopfitters can message us on WhatsApp or call 0121 714 0770 for bulk quotes.
Frequently asked questions
What is a non dig closer?
A non-dig closer is a hydraulic patch closer that sits on the floor and clamps to the bottom of the glass door, so there is no need to cut a recess into the floor for a floor spring.
Do I need this top fitting with a non-dig closer?
Yes. The non-dig closer controls the bottom of the door, and this non dig closer top fitting holds the top of the door in line so it swings correctly.
What else do I need?
Pair it with our non-dig floor spring and a glass door top pivot.
Can I fit it to any glass door?
The glass must be toughened and pre-drilled or notched to suit patch fittings at the manufacturing stage, because glass cannot be drilled after toughening.
